Product Details
Taifeng Cable Co, Ltd. was founded in 1998. It is one of the large-scale wire and cable enterprises in North China. Its "Cuibai" cables enjoy a good reputation in the fields of coal, power, construction, petrochemical industry, transportation and other fields.
Our company has passed EU certification, ISO 9001: 2015 Quality Management System Certification, ISO 14001: 2015 Environmental Management System Certification, Wire and Cable Production License, Safety Certificate of Approval for Mining Products, CCC Certification and Electric Energy Certification.
The products not only meet the national and the Ministry of Machinery standards,but also meet the international standards,British standards,German standards and American standards. We are also be able to design and manufacture specific products according to customers' requirements . We have won Hebei famous products, famous trademark and other various honors and awards issued by the country, province and city.
We are capable of meeting the most strict delivery schedules according to per purchase order. Meeting the deadline is always the top priority as any delay in the delivery of cable can contribute to overall project delay and cost overrun.
Cable is supplied in wooden reels, corrugated boxes and coils. Cable ends are sealed with BOPP self adhesive tape and non-hygroscopic sealing caps to protect the cable ends from moisture. The required marking shall be printed with a weather-proof material on the outsides of drum according to customer's requirement.
2. Q: I didn't find the cable which I need in this page?
Dear friends, welcome to our store. We will provide you excellent products and service as well as reasonable price. Please contact us if have any questions about the product. We will answer the questions carefully. At last, I wish you a pleasant purchase.
Welcome your inquiry!
DAN ZHAO | Taifeng Cable Co., Ltd
Office Add: Heda Center, No.177 Tailiu Road, Shibei District, Qingdao, China
Factory Add: Taifeng Road,Da Caozhuang Administritive District,China
Control Cable
1. Application
Used as power and connecting cables in mechanical engineering for tooling machinery, control unit, production lines, transportation equipment, conveyor and assembly lines as well as in plant construction under the circumstance that the rated voltage is up to 450/750V AC.
2. Standard
National Standard GB/T9330-2008, produced according to IEC\DIN\BS
3. Rated Voltage: 450/750V

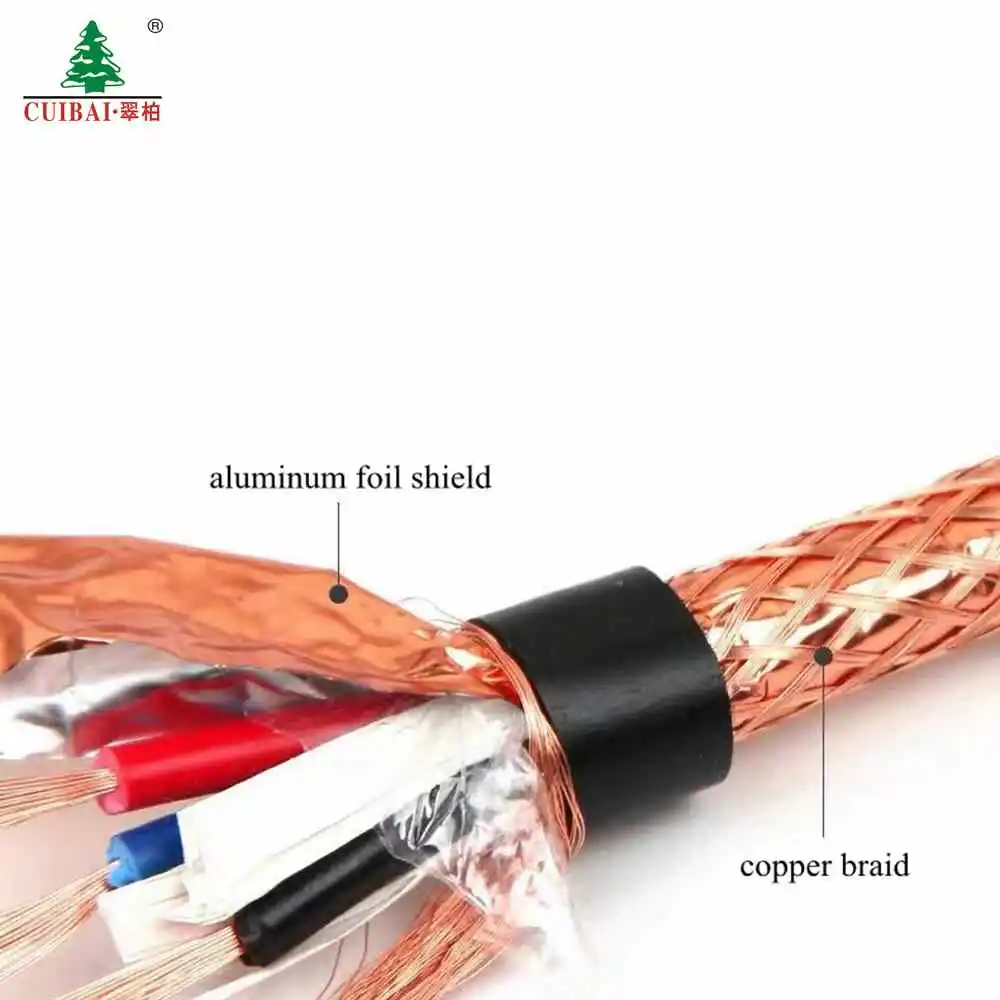

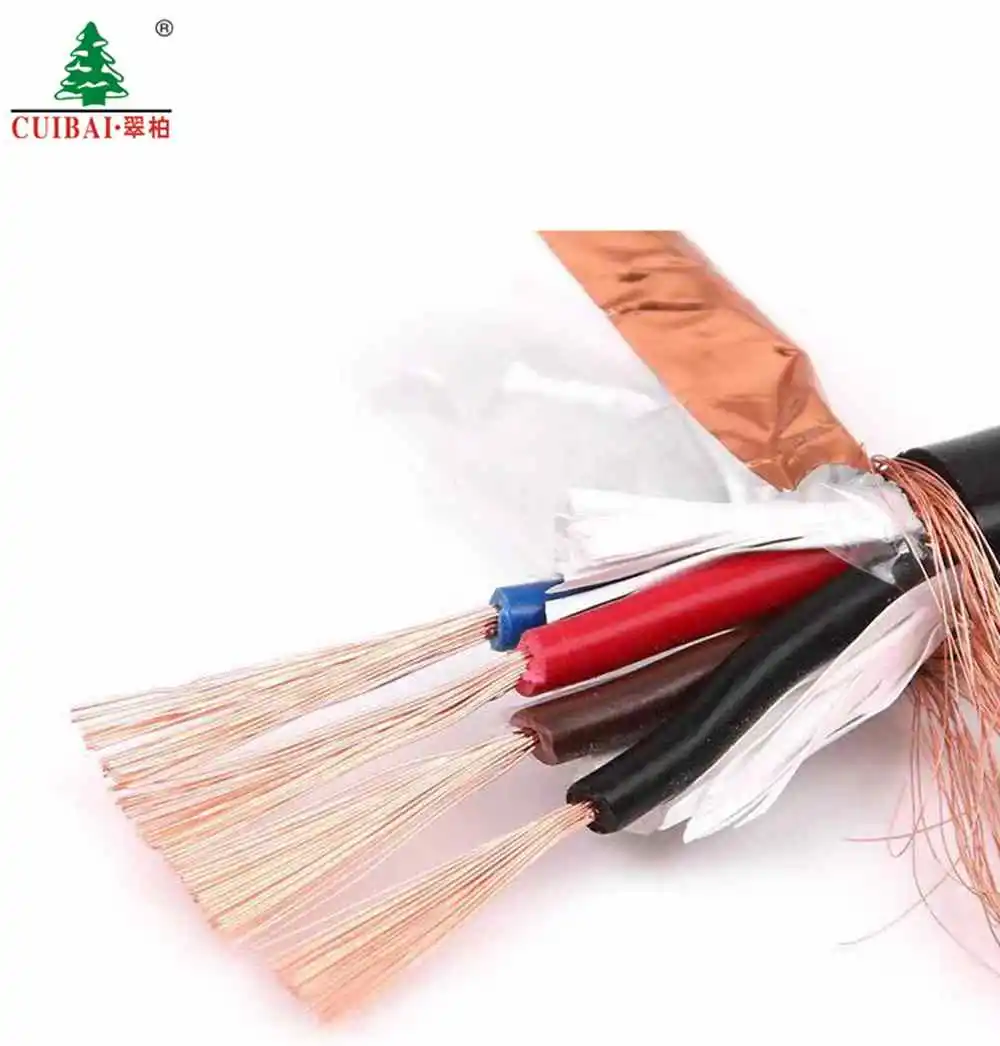

4. Construction:
1, copper conductor
2, PVC/PE/XLPE insulated
3, PVC sheathed
4. Braid shield
5. Copper tape shield
6. Inner sheath
7. Steel tape armoured
8. Steel wire armoured
9. Over sheath
5. Specification
| Type | Name | Section Area (mm2) | No.of Core | Application Site |
| KVV | CopperConductor,PVC Insulated and Sheathed Control Cable | 0.75 1.0 1.5 2.5 | 2-16 | Permanent installation indoors,in cable ditches or pipes |
| 4 6 | 2-14 | |||
| 10 | 2-10 | |||
| KVVP | Copper Conductor, PVC Insulated and Sheathed, Braiding Shielded Control Cable | 0.75 1.0 1.5 2.5 | 2-61 | Permanent installation indoors, in cable ditches or pipes where shielding is required |
| 4 6 | 2-14 | |||
| 10 | 2-10 | |||
| KVVP2 | Copper Conductor, PVC Insulated and Sheathed,Copper-tape Screened Control Cable | 0.75 1.0 1.5 2.5 | 4-10 | Permanent installation indoors, in cable ditches or pipes where shielding is required |
| 4 6 | 7-61 | |||
| 10 | 4-10 | |||
| KVV22 | Copper Conductor, PVC Insulated and Sheathed,Steel tape Armored Control Cable | 0.75 1.0 1.5 2.5 | 7-61 | Permanent installation indoors,in cable ditches, Be able to withstand stronger external mechanical force |
| 4 6 | 4-14 | |||
| 10 | 4-14 | |||
| KVVR | Copper Conductor, PVC Insulated and Sheathed,Flexible Control Cable | 0.5-2.5 | 4-61 | Installation indoors where flexibility and movability are required |
| KVVRP | Copper Conductor, PVC Insulated and Sheathed, Braiding shielded Flexible Control Cable | 0.5 0.75 1.0 | 4-61 | Installation indoors where flexibility shielding and movability are required |
| 1.5 2.5 | 4-48 | |||
| KYJV | CopperConductor, XLPE Insulated and PVC Sheathed Control Cable | 0.75 1.0 1.5 2.5 | 2-16 | Permanent installation indoors,in cable ditches or pipes |
| 4 6 | 2-14 | |||
| 10 | 2-10 | |||
| KYJVP | Copper Conductor, XLPE Insulated,Braiding Shielded, PVC Sheathed Control Cable | 0.75 1.0 1.5 2.5 | 2-61 | Permanent installation indoors,in cable ditches or pipes where shielding is required |
| 4 6 | 2-14 | |||
| 10 | 2-10 | |||
| KYJV22 | CopperConductor,XLPE Insulated,Steel-tape Armoured, PVCSheathed Control Cable | 0.75 1.0 1.5 2.5 | 7-61 | Permanent installation indoors,in cable ditches, pipes or underground Be cable to with stand stronger external mechanical force |
| 4 6 | 4-14 | |||
| 10 | 4-10 | |||
| KYJVP2 | CopperConductor,XLPE Insulated,Copper tape Screened, PVCSheathed Control Cable | 0.75 1.0 1.5 2.5 | 7-61 | Permanent installation indoors, in cable ditches or pipes where shielding is required |
| 4 6 | 4-14 | |||
| 10 | 4-10 | |||
| KYJVR | CopperConductor,XLPE Insulated, PVCSheathed Flexible Control Cable | 0.5-2.5 | 4-61 | Installation indoors where flexibility and movability are required |
| KYJVRP | CopperConductor,XLPE Insulated,Braiding Shielded, PVC Sheathed Flexible Control Cable | 0.5 0.75 1.0 | 4-61 | |
| 1.5 2.5 | 4-48 | Installation indoors where flexibility shielding and movability are required |
Taifeng Cable Co, Ltd. was founded in 1998. It is one of the large-scale wire and cable enterprises in North China. Its "Cuibai" cables enjoy a good reputation in the fields of coal, power, construction, petrochemical industry, transportation and other fields.
Our company has passed EU certification, ISO 9001: 2015 Quality Management System Certification, ISO 14001: 2015 Environmental Management System Certification, Wire and Cable Production License, Safety Certificate of Approval for Mining Products, CCC Certification and Electric Energy Certification.
The products not only meet the national and the Ministry of Machinery standards,but also meet the international standards,British standards,German standards and American standards. We are also be able to design and manufacture specific products according to customers' requirements . We have won Hebei famous products, famous trademark and other various honors and awards issued by the country, province and city.
We are capable of meeting the most strict delivery schedules according to per purchase order. Meeting the deadline is always the top priority as any delay in the delivery of cable can contribute to overall project delay and cost overrun.
Cable is supplied in wooden reels, corrugated boxes and coils. Cable ends are sealed with BOPP self adhesive tape and non-hygroscopic sealing caps to protect the cable ends from moisture. The required marking shall be printed with a weather-proof material on the outsides of drum according to customer's requirement.
1. Q: Are you trading company or manufacturer ?
A: We are factory.Taifeng Cable Co, Ltd was founded in 1998. It is one of the large-scale wire and cable enterprises in North China. Its "Cuibai" cables enjoy a good reputation in the fields of coal, power, construction, petrochemical industry, transportation and other fields.
2. Q: I didn't find the cable which I need in this page?
A: If you didn't find the species of cables you need, please contact us directly, we will reply you quickly.
3. Q: What is the MOQ?
A: Mostly we sell from stock for normal items, you can buy any quantity unless its customed-made.
4. Q: How long is your delivery time?
A: according to order quantity.Normally delivery date is 25 days .
5. Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge for you to check the cable quality but will not pay the cost of freight.
6. Q: What is your terms of payment ?
A: Normally 30% paid as prepayment, balance paid before delivery. Or 100% L/C at sight.
Dear friends, welcome to our store. We will provide you excellent products and service as well as reasonable price. Please contact us if have any questions about the product. We will answer the questions carefully. At last, I wish you a pleasant purchase.
Welcome your inquiry!
DAN ZHAO | Taifeng Cable Co., Ltd
Office Add: Heda Center, No.177 Tailiu Road, Shibei District, Qingdao, China
Factory Add: Taifeng Road,Da Caozhuang Administritive District,China
