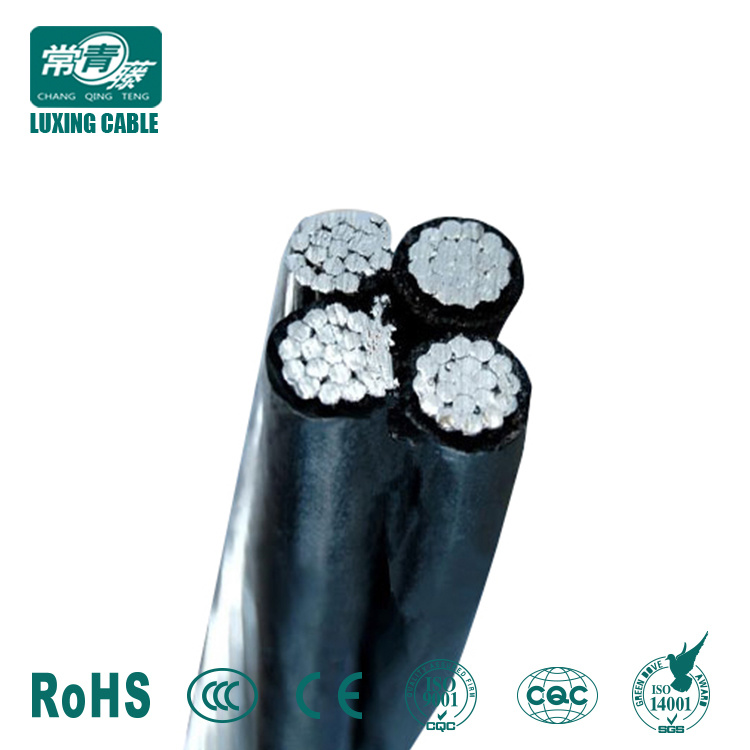

ABC Cable, Aerial Bundled Cable, 0.6/1 KV (NF C 33-209) from luxing cable factory
1.1kv,10kvinsulated overhead line
This product is suitable for AC rated voltage (Uo / U) 1/10kv power distribution grid system.
1kv insulated overhead line adopt GB/T12527-2008 & GB/T1179-2008 standard.
10kv insulated overhead line adopt GB/T14049-2008 & GB/T1179-2008 standard.
2.Type, name,laying occasion
3.Operating characteristic
4.Why buy cables from luxing cable factory?

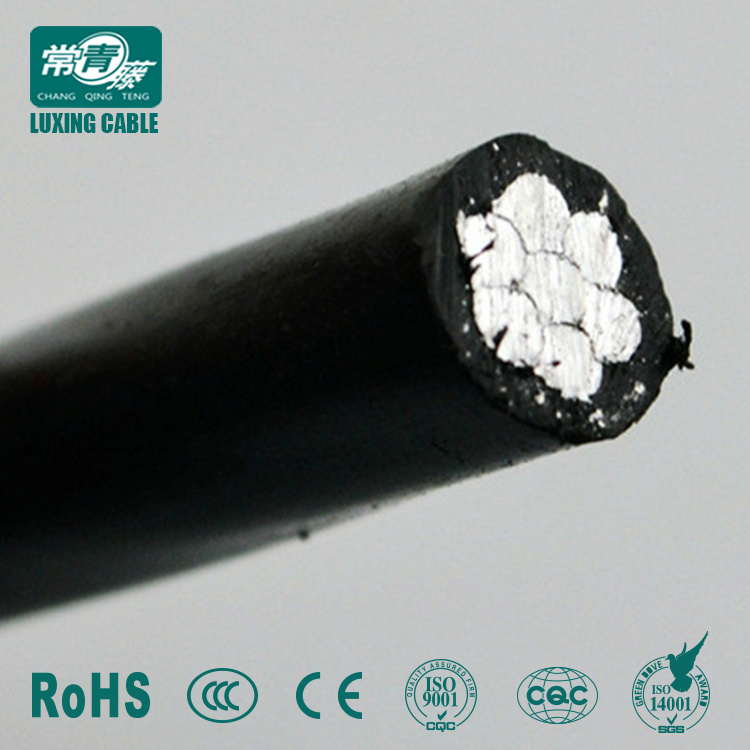

1.1kv,10kvinsulated overhead line
This product is suitable for AC rated voltage (Uo / U) 1/10kv power distribution grid system.
1kv insulated overhead line adopt GB/T12527-2008 & GB/T1179-2008 standard.
10kv insulated overhead line adopt GB/T14049-2008 & GB/T1179-2008 standard.
2.Type, name,laying occasion
| Type | Laying occasion | ||
| Copper core | Aluminum core | Steel core(intensive)aluminum stranded core | |
| JKV | JKLV(BLVW) | JKLGV(BLVWG or BLGVW) | Aerial fixed laying lines or service wire,only for 0.6/1kv line. |
| JKYJ | JKLYJ | JKLGYJ | Aerial fixed laying lines,cables and trees should be set up to consider keeping a certain distance,during cable working,it is allowed to contact frequent with trees. |
| JKYJ/Q | JKLYJ/Q | JKLGYJ/Q | Aerial fixed laying lines,cables and trees should be set up to consider keeping a certain distance,during cable working,it is allowed to contact temporary with trees. |
| JKYJ/J | JKLYJ/J | JKLGYJ/J | Aerial fixed laying lines,cables and trees should be set up to consider keeping a certain distance,during cable working,it is allowed to contact frequent with trees,allow low laying. |
 |  |  |
3.Operating characteristic
1)rated voltage 0.6/1kv,10kv
2)max permissible continuous operating temperature of conductor:PVC insulated ≤70ºC.XLPE insulated ≤90ºC.
3)during short circuit(lasting less than 5s),the maximum temperature of the cable:PVC insulated is 160ºC;XLPE insulated should not exceed 250ºC.
4)laying temperature of cable should not less than -20ºC,cable should be preheated when below -20ºC.
5)bending radius:
-0.6/1kv
D<25mm,should not less than 4D;steel core( intensive) should not less than 6D.
D≥25mm,should not less than 6D;steel core(intensive) should not less than 10D.
-10kv
single core cable should not less than 20D,steel core strand should not less than 25D.
multi-core cable should not less than 15D,steel core strand should not less 20D.
2)max permissible continuous operating temperature of conductor:PVC insulated ≤70ºC.XLPE insulated ≤90ºC.
3)during short circuit(lasting less than 5s),the maximum temperature of the cable:PVC insulated is 160ºC;XLPE insulated should not exceed 250ºC.
4)laying temperature of cable should not less than -20ºC,cable should be preheated when below -20ºC.
5)bending radius:
-0.6/1kv
D<25mm,should not less than 4D;steel core( intensive) should not less than 6D.
D≥25mm,should not less than 6D;steel core(intensive) should not less than 10D.
-10kv
single core cable should not less than 20D,steel core strand should not less than 25D.
multi-core cable should not less than 15D,steel core strand should not less 20D.
4.Why buy cables from luxing cable factory?
1) Reliable material;
-Each raw material into the plant, must undergo a rigorous selection and testing,
-To ensure that the best material to you.
2) Strict production;
-24 production processes, 24 detection processes,
-Each of the strict control procedures to ensure cable safety.
3) Safe packaging ;
-Using wood fumigation plate, plus metal packaging,
-reliable transport so that cable safely arrived at your site.
