Features
1. Low Insertion loss and PDL
2. Compact Design
3. Good channel-to-channel uniformity
4. Wide Operating Wavelength: From 1260nm to 1650nm
5. High Reliability and Stability
Applications
1. FTTX Systems
2. PON Networks
3. CATV
4. Optical Signal Distribution
| Specifications (1XN): | |||||||
| Parameters | 1X2 | 1X4 | 1X8 | 1X16 | 1X32 | 1X64 | 1X128 |
| Operating wavelength | 1260 ~1650nm | ||||||
| Insertion Loss (dB)(P/S Grade) | 3.6/4.0 | 7.2/7.4 | 10.2/10.5 | 13.5/13.7 | 16.2/16.7 | 20.5/21 | 23.8/24.5 |
| Uniformity (dB) | 0.4 | 0.6 | 0.8 | 1 | 1.2 | 1.8 | 2 |
| PDL (dB) | 0.2 | 0.2 | 0.3 | 0.3 | 0.3 | 0.4 | 0.5 |
| Return Loss (dB) | ≥55 | ||||||
| Directivity (dB) | ≥55 | ||||||
| TDL(dB) | 0.5 | ||||||
| Operating/Storage Temperature (ºC) | |||||||

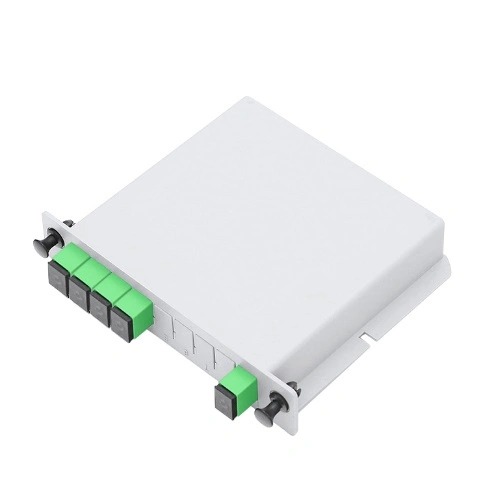

Product pic:
Application:
Packing:
Factory:
Wuhan Wolon Commnunication technology Co.,LTD. Is located in Optical Valley Wuhan China . it specializes in R & D, products and sales of PLC splitter,optical fiber cable, , patch cord, optical fiber distribution frame, optical module, optical cable cross connection cabinet and other FTTH products. With the great technology in optical research and production, wolon gathers a group of optical talents on fiber communication, which possess the rich experience of R & D and a strong capability of technology innovation. Our company has the world's advanced equipment in producing, testing and packaging. Wolon has a strict quality control system in 2013. at the same time passed the ISO9001 certification and TLC certification.
To create the world's leading brand communication products, Wolon always sets " Quality first, Customer-Focused Purpose, Developing on Innovative Technology" as our company core values. We are sincerely looking forward to people at domestic and abroad to visit our factory and corporate with us. We will provide you best products and service.
Exhibition:
Certificates:
Shipping:
Contact:
