Indoor FTTH 2 core fiber optic distribution box 2 port fiber optic terminal box
Application :

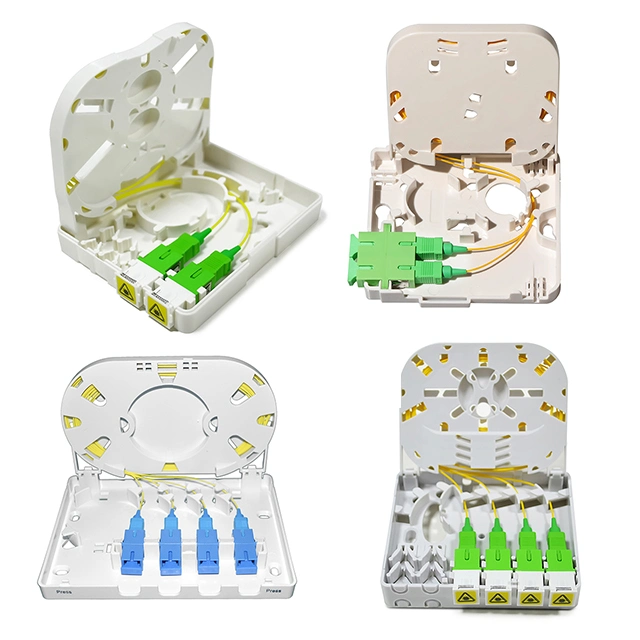

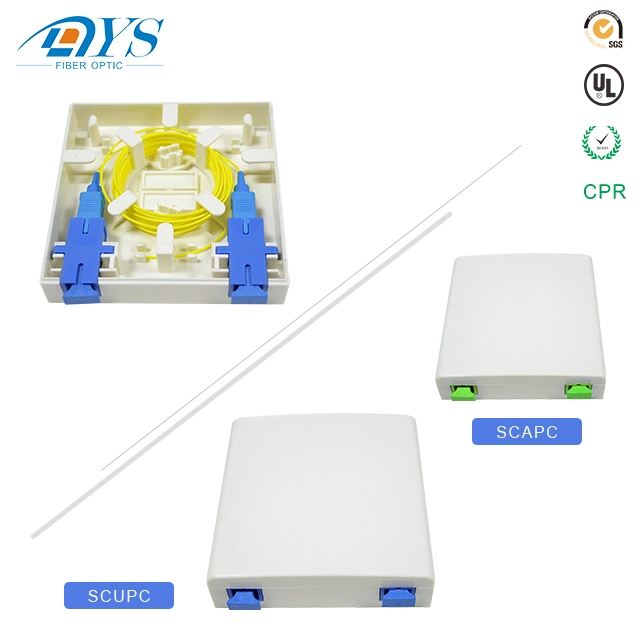

The FTTH-16 is a desk mounted or wall mounted termination box for end user, indoor use,
capable to handle fiber fusion, fiber cables and pigtails.
Features & Benefits
- Support termination, splicing and storage for fiber optic cable systems
- Suitable for two adapters SC or two adapters LC configuration
- Compatible with G.657A1
- Compact structure and perfect fiber management
- Engineered fiber routing protect bend radius through the unit to ensure signal integrity
- Applicable for desk-mount or wall-mounted and compatible with flush-mount outlet.
Specifications
| Parameter | Value | Remark |
| Model | FTTH-016 | |
| Outside Dimension (mm) | 80*100*23 | |
| Material | ABS | |
| Color | White | |
| Storage of fibers | G.657 | |
| Splice capacity | 2fiber | |
| Splice Method | Fusion Splice | 1.0*40mm sleeve |
| Adapter type and count | 2 SC/SX or 2 LC/DX | |
| Input cable | 3mm or figure 8 (2*3mm) | From side or bottom |
DYS win the the honorary title of National High-tech enterprise by Shenzhen government in 2014.
Over 3500 square meters and more than 18 non dust production lines .About 200 well-trained staff and engineers are contributing to our proud products. We have 4 production lines for fiber optic cable, 2 high standard MPO/MTP jumper assembly lines, 8 production lines for standard jumper and 10 PLC Splitter production lines.
The most advanced imported polishing equipment and testing instruments enable our products have super quality, such as Senko polishing machine, interferometer, automatic cleaning machine and OTDR ,JGR and so on.
All of our optical products are RoHS compliant and DYS also obtained ISO9001, ISO14001 certification. Our high quality products and outstanding service win the customer from all the world, DYS fiber optic is looking forward to cooperate with you.
1. How many staff's we have?
Answer: About 200 well-trained staff and engineers.
2. When our company be established?
Answer: We started from year 2008.
3. What's our main products?
Answer: DYS dedicates to the developing, production, marketing of the Fiber Optic Cable,
Indoor/Outdoor Patch Cord, Splitter, Adapter, Attenuator, and so on.
4. What is the area of the factory?
Over 3500 square meters
More than 18 non dust productions lines in total
4 production lines for Fiber Optic Cable
2 high standard MPO/MTP Jumper assembly lines
8 production lines for standard Jumpe
4 PLC Pplitter production lines
5. What certificate we have?
Answer: ISO 9001: 2015, RoSH, CE, High and New Tech Enterprise Certficate.
