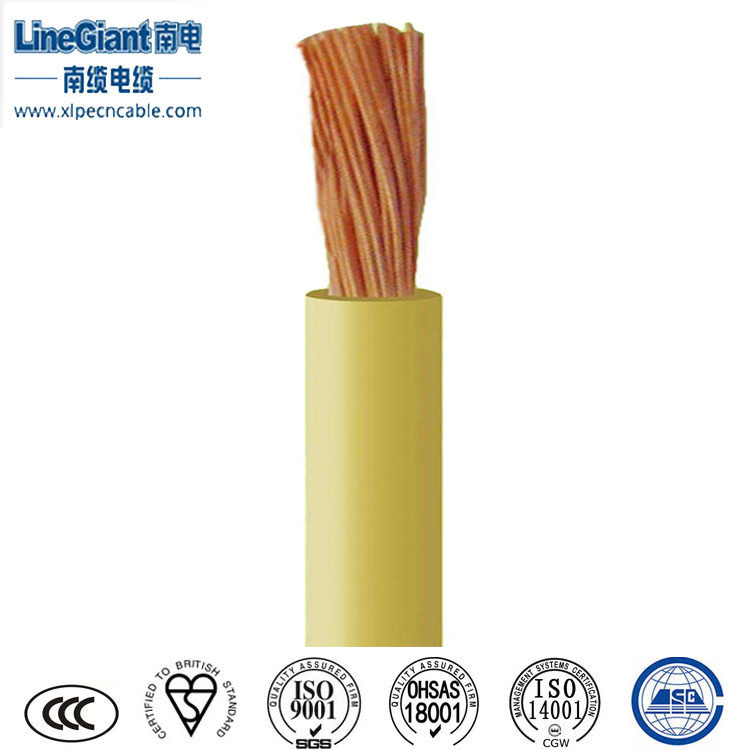

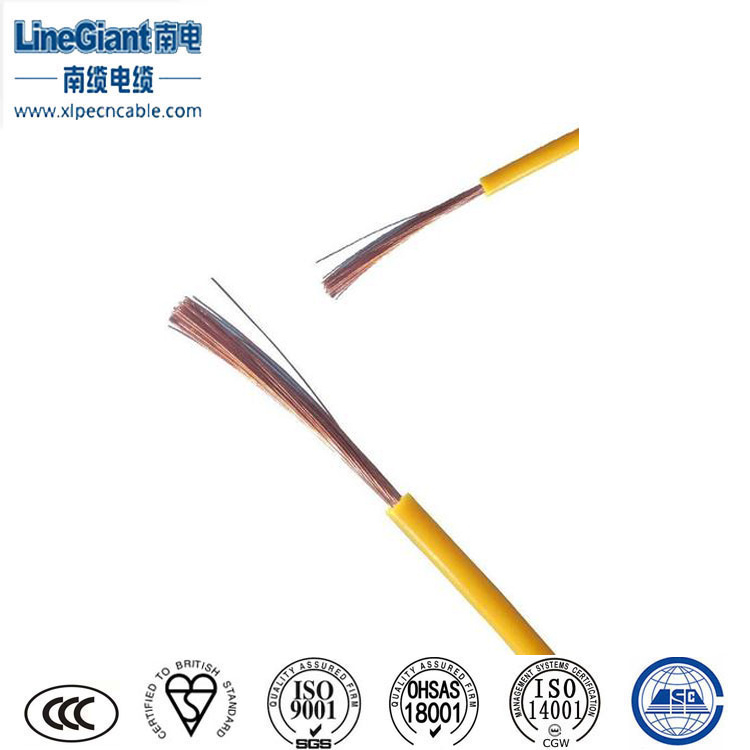

Copper Core Flexible Wire Cable for Home Appliance (RV):
Operation Characteristic
When the cable is used for a long time, the maximum working temperature of the core does not exceed 700C. The ambient temperature should not be less than 00C during installation.The cable(wire) can be laid in the air,under or buried with cover or buried underground directly.
Rated temperature : 70°C
Rated voltage : 300/500V
During installation: +5 °C up to+70 °C
Fixed installed: -30 °C up to+70 °C
At short circuit of max. 5 s: up to 160 °C
Ambient temperature at storage: up to 40 °C
Nominal voltage: Uο/U = 450/750 V
Test voltage: 2500 V
Minimal inner bending radius: 4D for D < 8 mm; 5D for 8 - 12mm; 6D for D > 12 mm
| Model | Specification | Conductor Weight | Main Conductor | |||||
| Number of cores | Copper wire diameter | Number of copper wire | Structure | Weight | Outer diameter | |||
| RV | 0.75 | 0.006702902 | 1 | 0.2 | 24 | 24 | 0.006702902 | 1.13 |
| RV | 1 | 0.00911684 | 1 | 0.2 | 32 | 32 | 0.00911684 | 1.29 |
| RV | 1.5 | 0.013354747 | 1 | 0.25 | 30 | 30 | 0.013354747 | 1.889 |
| RV | 2.5 | 0.021812753 | 1 | 0.25 | 49 | 49 | 0.021812753 | 2.016 |
| RV | 4 | 0.033974476 | 1 | 0.3 | 53 | 53 | 0.033974476 | 2.515 |
| RV | 6 | 0.050641199 | 1 | 0.3 | 79 | 79 | 0.050641199 | 3.074 |
| RV | 10 | 0.091641238 | 1 | 0.25 | 210 | 7*30/0.25 | 0.091641238 | 4.18 |
| RV | 16 | 0.14400766 | 1 | 0.25 | 330 | 11*30/.25 | 0.14400766 | 5.242 |
| RV | 25 | 0.213829555 | 1 | 0.25 | 490 | 10*49/0.25 | 0.213829555 | 6.388 |
| RV | 35 | 0.297161987 | 1 | 0.4 | 266 | 14*19/0.4 | 0.297161987 | 7.529 |
| RV | 50 | 0.424517125 | 1 | 0.4 | 380 | 20*19/0.4 | 0.424517125 | 9 |
| RV | 70 | 0.586589803 | 1 | 0.51 | 323 | 17*19/0.51 | 0.586589803 | 10.579 |
| RV | 95 | 0.828126781 | 1 | 0.51 | 456 | 24*19/0.51 | 0.828126781 | 12.572 |
| RV | 120 | 1.035158477 | 1 | 0.51 | 570 | 30*19/0.51 | 1.035158477 | 14.056 |
| RV | 150 | 1.311200737 | 1 | 0.51 | 722 | 38*19/0.51 | 1.311200737 | 15.821 |
| RV | 185 | 1.587242998 | 1 | 0.51 | 874 | 46*19/0.51 | 1.587242998 | 17.407 |
| RV | 240 | 2.070316953 | 1 | 0.51 | 1140 | 60*19/0.51 | 2.070316953 | 19.881 |
FAQ
1.Can you offer me a free sample?
Yes, after price confirmation, you can require for free samples but the freight should be paid.1.Can you offer me a free sample?
2.How long to get the sample?
After you pay the freight and send us confirmed files, the samples will be ready for delivery in 3-7 days. Then they will be sent to you via express and arrive in 3~5 days.3.How many years has Line Giant Cable been in production?
4.What kinds of products does Line Giant Cable manufacture?
- Specialties, such as railway locomotive cables, power shipboard cables, solar photovoltaic cables, aerospace wire and cable, weaponry equipment wire and cable, silicon rubber cable, aluminum alloy cable, charging pile cable 5G communication base station and so on;
- Low, Medium, High Voltage (1kV-220kV) XLPE Insulated (Armoured) Power Cable
- PVC Insulated (Flexible ) Wire, PVC Insulated and Sheathed (Armoured) Power Cable;
- Mineral insulated cable, such as extra high refractory (fire-resistant 15000C) copper core flexible mineral insulated cable and so on;
- Control Cable;
5. What kind of certifications do you have?
ISO9001:2015, ISO14001:2015,OHSM18001,GJB9001C-2017,SGS
6. Which standards do you comply with when you produce the electrical wires and cables?
We are able to produce electrical wires and cables based on GB, JB, IEC,UL/CSA,BS,DIN,EN,ASTM,AS/NZS. Meanwhile, we can design and manufacture the cables according to the samples and technical specification you supply.
7. What is the min. Order quantity?
It depends on the type and size of electrical wires and cables. For some large electrical wires, 100 meters can be accepted. For the power cables with medium or high voltage, that should comply with the property of installed equipment. Anyhow, we will try our best to solve the problem and meet your requirements. Mostly we sell from stock for normal items, you can buy any quantity unless it is customized.
8.I didn't find the cable which I need in this page?
If you didn't find the cables you need, please contact us directly, we will reply you quickly.Also, you can visit our English website gdnanlan.en.made-in-china.com
9.What is the lead time for mass production?
Honestly, it depends on the order quantity and the season you place the order. The best record we keep is delivering 10 kilometers cable within a week. Generally speaking, we suggest that you start inquiry two months before the date you would like to get the products at your country.Welcome your inquiry! Any question please feel free to contact me.
