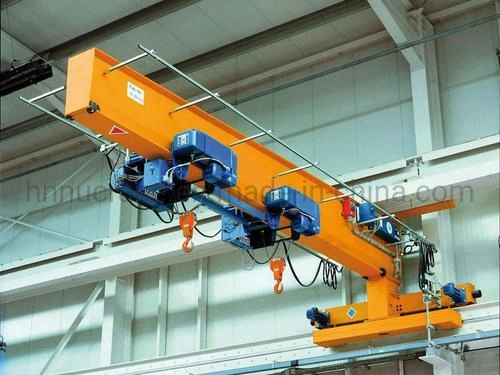

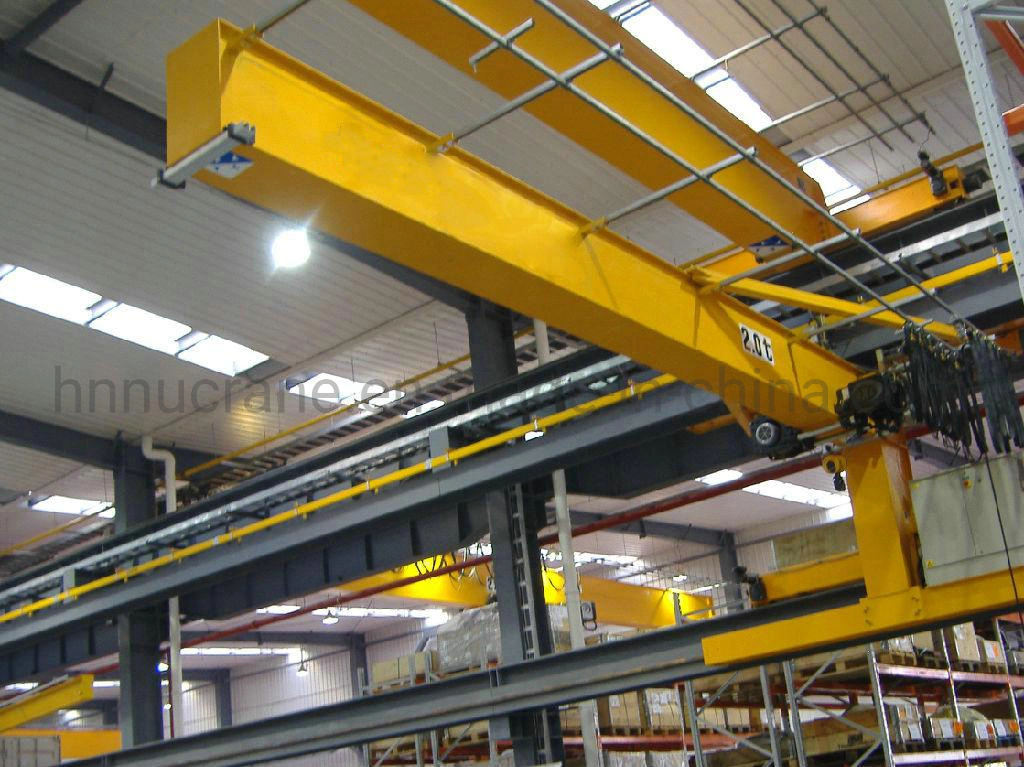

Wall Traveling Jib Crane Description
Wall Traveling Jib Crane is a new suspends and transport equipment based on wall/column mounted jib cranes. Its track is fixed on concrete wall or steel frame in the factory workshop, it can move in longitudinal way while electric hoist can finish transverse movement along horizontal vertical direction.
Wall Traveling Jib Crane hoist mechanism is similar to the floor mounted jib crane, is the second transport level which carries goods independently from overhead cranes, it provides fluent moving of materials an every level of the workshop. Wall Traveling Jib Crane is equipped with chain hoist, large or high lifting speed also can be used wire rope hoists.
Wall Traveling Jib Crane can expand the scope of working and uses the space of factory building efficiently, so it will take a better use effect. It can work freely in three-dimensional space, especially in the short, intensive lifting working area, safe, reliable, high efficiency, energy-saving, time-saving and labor-saving, unique advantages, 360 degree makes it widely to be used in workshop, warehouses, terminals and other fixed location.
Wall Mounted Jib Crane Advantages
1. Rated Lifting capacity: 0.25- 5t, Max. capacity is 10t
2. Arm length: 3~7m (be designed according to special requirements)
3. Lifting Height: 2-10m
4. Power Source: AC 380V, 50HZ, 3phase or users local voltage
5. Working Temperature: -25~+40°C
6. Lifting mechanism: Electric chain hoist or Electric wire rope hoists
7. Slewing Mechanism: Electric motor type or Manual control type
8. Main Material: Q235B Mn Steel
9. Swing angle is 180 degree
| Wall-Travelling Jib Crane Specifications | ||||||
| Lifting Capacity | t | 1 | 2 | 3 | 5 | |
| Lifting Height | m | 5;6.3;8;10;12.5;16;20;30 | ||||
| Max.Validity Cantilever | m | 5~10 | ||||
| Min.Validity Cantilever | m | 2.5(1.8) | 3.2(2.5) | |||
| Working System | A3 | |||||
| Speed | Hoisting | m/min | 8; 8/0.8 | |||
| Crab Travelling Speed | m/min | 20 | ||||
| Trolley Travelling Speed | m/min | 3~30(frequency converter) | ||||
| Slewing Speed | r/min | 0.3~0.7(frequency converter) | ||||
| Slewing Angel | ° | 180° | ||||
| Power Souree | 3phase A.C.50Hz 380V | |||||
