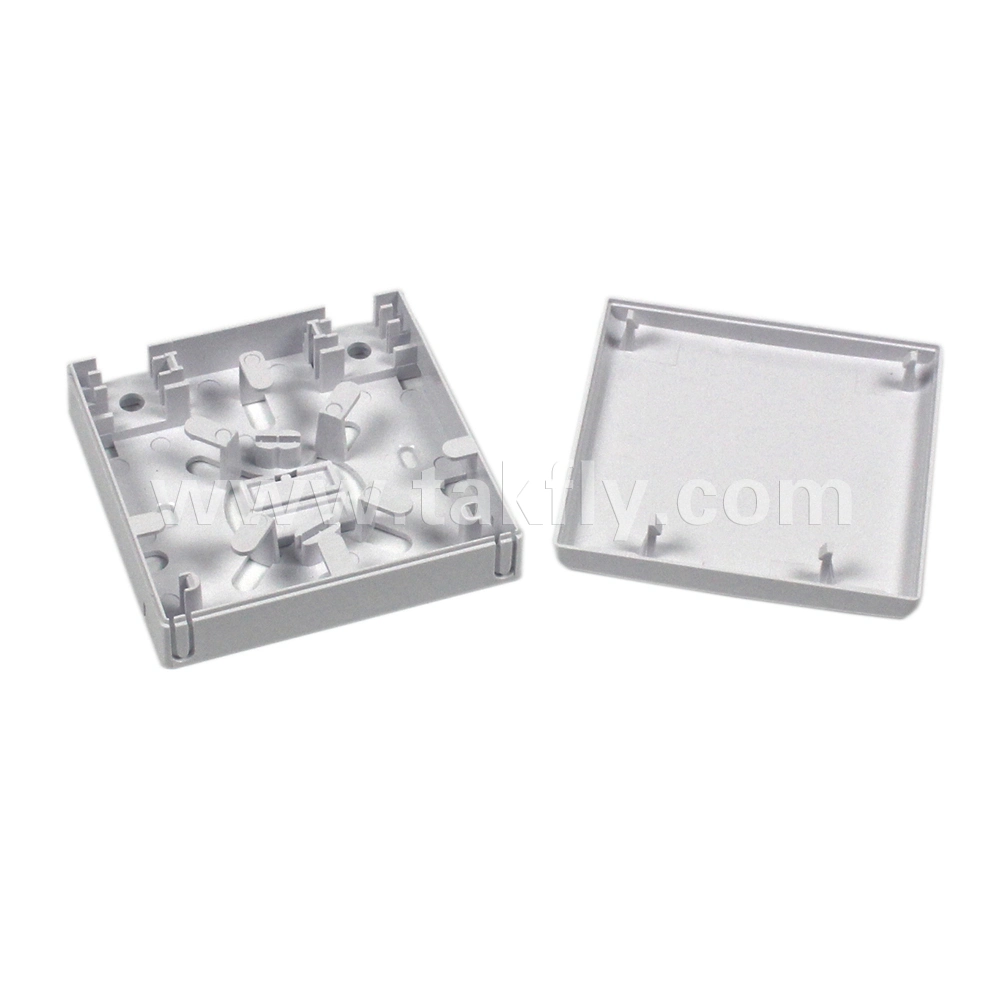

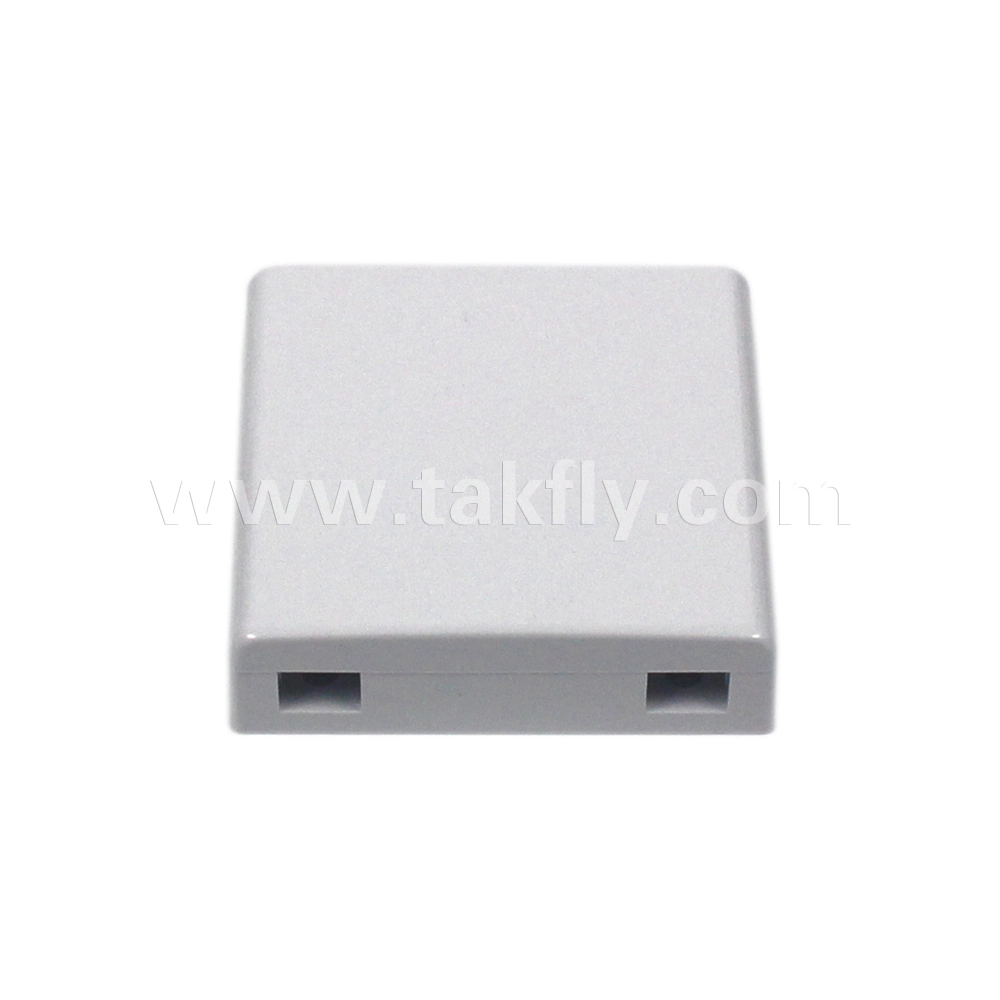

Cost effective 2 Port Sc APC Upc FTTH Fiber Optic Termination Box
Description:
It is used for different kinds of modules and applied to the working area subsystem.
It uses embedded surface frame, easy to install and disassemble, it is with protective door and dusty free, can do OEM for any customers and print requested LOGO.
With application of fiber SC/LC simplex, duplex and other different environment installed plate or flush plate. All modules can be configured on customer's choice.
Cable management can be connected without cutting(with express port)
All modules are free of welding.
Working area:
The telecommunication network, metropolitan area network, optical fiber communication system.
Optical testing equipment/instrument.
CATV optical fiber, optical fiber sensor.
Optical fiber broadband access network, FTTH optical fiber.
Optical fiber distribution frame, frame type and wall type optical fiber distribution unit.
Performance index:
Configuration table:
Table 1 Model and configuration
What services we can provide for you??
Order inquiry: Keep working time from 8 AM to 23 PM to gurantee the first reply
to clients,and 24 hours no Cellphone power off
Order production: Keep very close touch with production department to gurantee the right delivery time to clients
Before shipment: Our sales would double check the order quantity,package and strength of cartons to avoidlost and damage
After shipment: Keep tracking shipping status and reporting to clients
Shipment: DHL,UPS,FEDEX,TNT,EMS,SEA,AIR
About Takfly
Any query about this 2 port fiber terminal box,please leave me an inquiry or contact me directly.
Fiber termination box is used as a termination point for the feeder cable to connect with drop cable in FTTx communication network system.It intergtates fiber splicing, splitting, distribution, storage and cable connection in one unit. Meanwhile, it provides solid protection and management for the FTTx network building.
Description:
It is used for different kinds of modules and applied to the working area subsystem.
It uses embedded surface frame, easy to install and disassemble, it is with protective door and dusty free, can do OEM for any customers and print requested LOGO.
With application of fiber SC/LC simplex, duplex and other different environment installed plate or flush plate. All modules can be configured on customer's choice.
Cable management can be connected without cutting(with express port)
All modules are free of welding.
Working area:
The telecommunication network, metropolitan area network, optical fiber communication system.
Optical testing equipment/instrument.
CATV optical fiber, optical fiber sensor.
Optical fiber broadband access network, FTTH optical fiber.
Optical fiber distribution frame, frame type and wall type optical fiber distribution unit.
Performance index:
| Item | Technical data |
| Application | 3.0 x 2.0 mm drop cable or indoor cable |
| Fiber diameter | 125μm ( 652 & 657 ) |
| Tight cladding diameter | 250μm & 900μm |
| Mode of application | Single mode & duplex mode |
| Tensile strength | >50 N |
| End-use temperature | -40~+85ºC |
| Adaptor | SC & LC |
| Insertion loss | ≤0.2dB(1310nm & 1550nm) |
| output | 1 |
Configuration table:
Table 1 Model and configuration
| Model | Size(Pic 1) | Max Capacity | Installation Size(Pic 2) | |
| A*B*C(mm) | SC | LC | D (mm) | |
| TKS-1806-01C | 86*115*23 | 1 | 2 | 81 |
