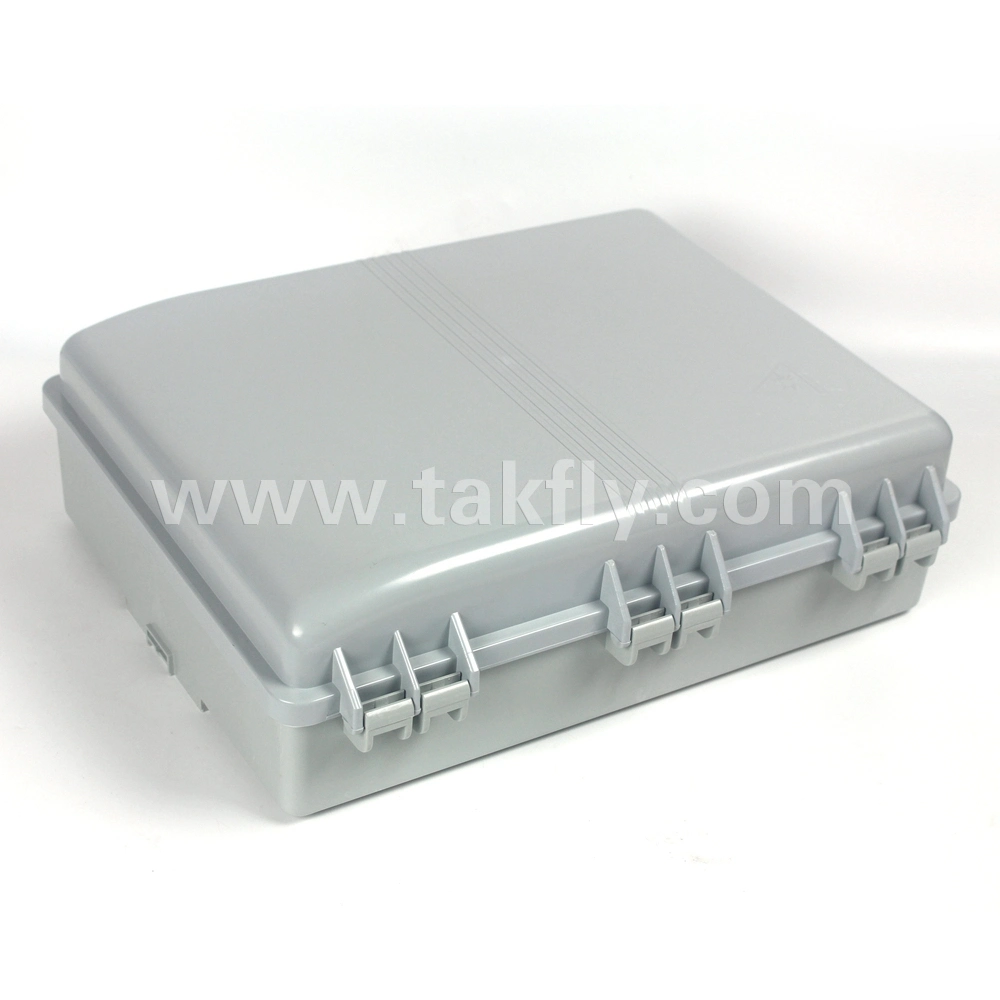

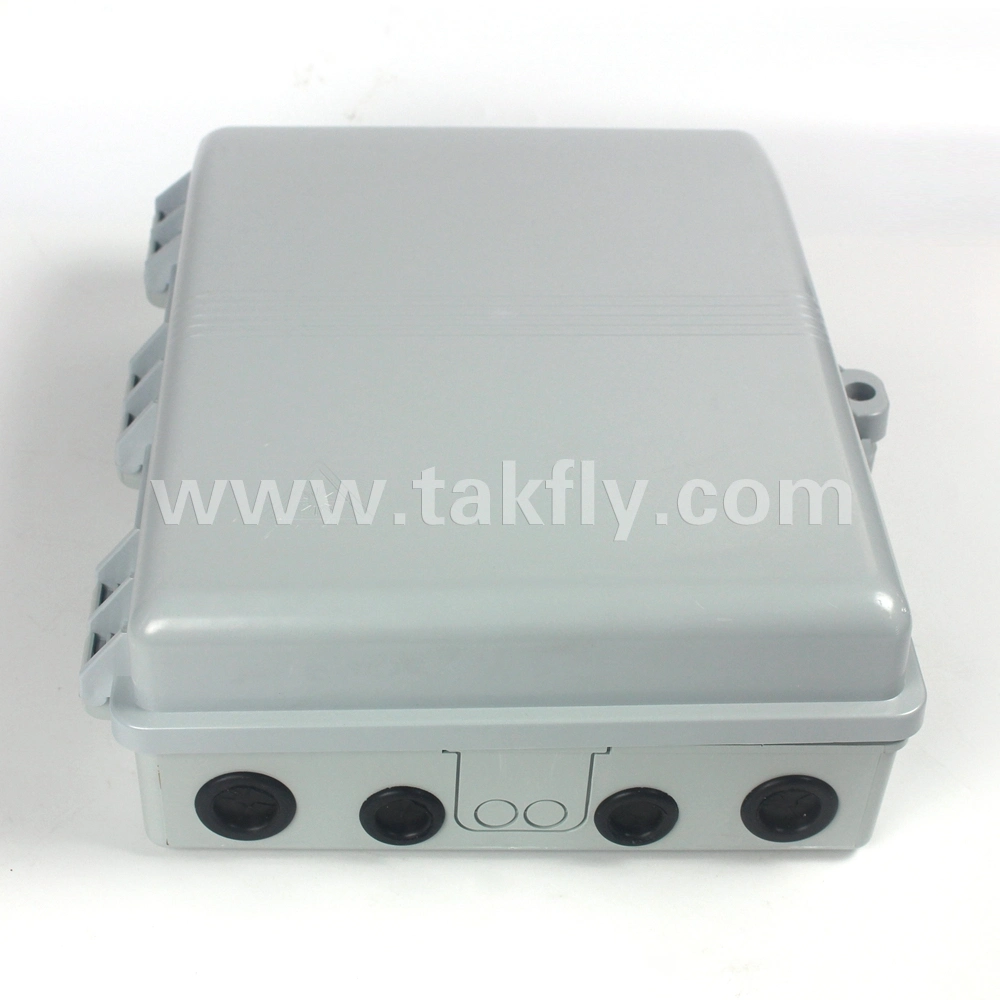

48Ports Fiber Optic Termination Box
Model No.: FTKS-1806-48A
Description
TKS-1806-48A fiber access termination box is able to hold up
to 48 subscribers. It is used as a termination point for the feeder cable to connect with drop
cable in FTTx network system. It integrates fiber splicing, splitting, distribution, storage and
cable connection in one solid protection box.
Features
Water-proof design with IP-66 Protection level.
Integrated with splice cassette and cable management rods.
Manage fibers in a reasonable fiber radius condition.
Easy to maintain and extend the capacity. Fiber bend radius control more than 40mm.
Suitable for the fusion splice or mechanical splice. 2pcs of 1*16 Splitter can be installed as
an option. Efficient cable management.
1 port entrance for feeder cable and 2 ports for drop cable
Configuration
*Material:PC +ABS
*Size:A*B*C(mm) 400*310*120
*Max Capacity:48 Ports SC
*Installation size :D*E (mm) 255*380
*Weight :2.17kg
*Size:A*B*C(mm) 400*310*120
*Max Capacity:48 Ports SC
*Installation size :D*E (mm) 255*380
*Weight :2.17kg
